MultiRAE Lite - Internal Pump

MultiRAE Lite - Internal Pump

MultiRAE PRO

MultiRAE PRO

MultiRAE

* Cannot use Chlorine Dioxide and Hydrogen Sulfide sensors in the same unit. *
* Cannot use Nitric Oxide and Ammonia sensor in the same unit. *
* NDIR % Vol Combustible Sensors must be accompanied by the Catalytic "LEL" sensor. *

$3,259.00
SKU
RAEMBB3

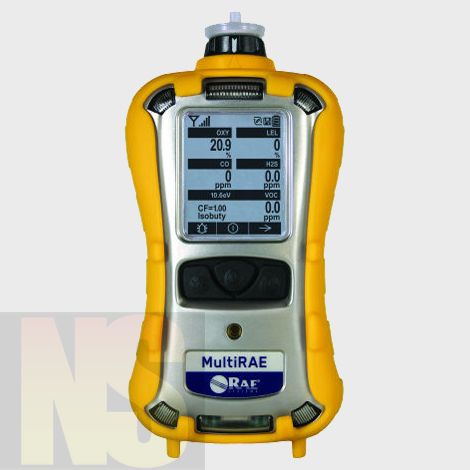

MultiRAE - The NEW MultiRAE - Wireless Portable Six-Gas Monitor with Advanced VOC Detection Capability (PGM-6228) by RAE Systems.


The MultiRAE is the most advanced wireless portable chemical detector on the market with a 0.1 to 5,000 ppm PID sensor range, the broadest in its class. Certified to meet the military performance standard MIL-STD-810F, the MultiRAE can be configured with more than 30 intelligent sensors (including PID, NDIR, and exotics such as ammonia, chlorine, formaldehyde, and phosgene) to fully meet the monitoring needs of a variety of applications, including industrial hygiene, personal protection, multi-gas leak detection, and HazMat response.

The instrument boasts the largest display and longest battery runtime in its class (with an optional extended battery), as well as an ergonomically contoured case that is rugged, dust-tight and waterproof (IP-65 rating). A compartmentalized design of the MultiRAE makes the replacement of its sensors, pump, and plug-and-play battery simple, even in the field, and the AutoRAE 2 Automatic Test and Calibration System ensures bump testing and calibration of up to 10 instruments is as easy as a press of a button.
When deployed on RAE Systems’ Dedicated Wireless Network, the MultiRAE provides safety officers wireless access to real-time instrument readings and alarm status for better visibility and faster incident response. The MultiRAE five-way notification system for gas and Man Down alarms immediately alerts the user, people working in the vicinity, and safety officers at the command center if a hazardous atmosphere has been detected or a person has been overcome.

MultiRAE Gas Monitor Specifications Sheet



Sensor Specifications:

Specifications
PID Sensor Range Resolution
VOC 10.6 eV (HR) 0.1 - 5,000 ppm 0.1 ppm
VOC 9.8 eV 0.1 - 2,000 ppm 0.1 ppm

Combustible Sensors Range Resolution
Catalytic LEL 0 to 100% LEL 1% LEL
NDIR (0-100% LEL Methane) 0 to 100% LEL 1% LEL
NDIR (0-100% Vol. Methane) 0 to 100% Vol. 0.1% Vol.

Carbon Dioxide CO2 NDIR Sensor Range Resolution
CO2 NDIR HR Carbon Dioxide
(CO2) NDIR Sensor
0 to 50,000
ppm
100 ppm

Electrochemical Sensors Range Resolution
Ammonia (NH3) 0 to 100 ppm 1 ppm
Carbon Monoxide (CO) 0 to 500 ppm 1 ppm
Carbon Monoxide (CO), Ext Range 0 to 2,000 ppm 10 ppm
Carbon Monoxide (CO), H2-comp. 0 to 2,000 ppm 10 ppm
Carbon Monoxide (CO)
Hydrogen Sulfide (H2S) - Combo
0 to 500 ppm
0 to 200 ppm
1 ppm
0.1 ppm
Chlorine (Cl2) 0 to 50 ppm 0.1 ppm
Chlorine Dioxide (Cl02) 0 to 1 ppm 0.03 ppm
Ethylene Oxide (Et0-A) 0 to 100 ppm 0.5 ppm
Ethylene Oxide (Et0-B) 0 to 10 ppm 0.1 ppm
Formaldehyde (HCH0) 0 to 10 ppm 0.01 ppm
Hydrogen Cyanide (HCN) 0 to 50 ppm 0.5 ppm
Hydrogen Sulfide (H2S) 0 to 100 ppm 0.1 ppm
Methyl Mercaptan (CH3-SH) 0 to 10 ppm 0.1 ppm
Nitric Oxide (N0) 0 to 250 ppm 0.5 ppm
Nitrogen Dioxide (N02) 0 to 20 ppm 0.1 ppm
Oxygen (02) 0 to 30% Vol. 0.1%Vol.
Phosphine (PH3) 0 to 20 ppm 0.1 ppm
Sulfur Dioxide (S02) 0 to 20 ppm 0.1 ppm















































































Applications:

  • - Fire Overhaul
  • - Personal protection and multi-gas leak detection in industries such as:
  • - Chemical
  • - Telecommunications
  • - Oil and Gas (downstream)
  • - Food and beverage


Configurations:


Monitor-Only Includes-
- MultiRAE monitor with sensors, battery and wireless option as specified
- Protective rubber boot and filter(s) installed
- Conitinuous datalogging (6 months for 5 sensors @ 1-minute intervals)
- Travel charger / PC communication adapter
- PC Communication cable
- AC Adapter
- Calibration Adapter
- Alkaline battery adapter
- Hex Tool
- Quick Start Quide
- CD with documentation
- ProRAE Studio II Instrument Configuration & Data Management Software
- Calibration & Test Certificate
- Warranty/Registration Card
- Built-in Pump
- Belt Clip installed
- 3 spare external filters
- PID Sensor cap removal tool
- Plastic Case

Monitor with Optional Accessories / Confined Space Kit adds:
- Hard Transport case with custom foam
- Remote Sample Draw Kit
10" aluminum sample probe with replacement filters
3 hydrophobic barrier filters
10' self-coiling Teflon® tubing w/ Luer-style quick-connect fitting

Monitor with Optional Calibration Kit adds:
- Accessories / Confined Space Kit
- Regulator(s) - depending upon gas selection

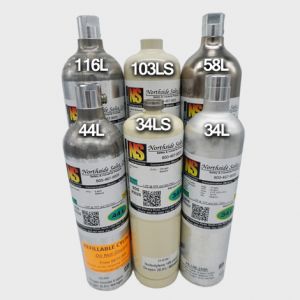

- 100 ppm Isobutylene Gas
- Quad Mix (C0,H2S,LEL and O2) Gas for MultiRAE
*(please note we offer other calibration kits depending upon sensor configuration on monitor)
